AT6101Z High-Efficiency CRM-CCM Multi-Mode Operation Power Factor Correction Controller
AT6101Z High-Efficiency CRM-CCM Multi-Mode Operation Power Factor Correction Controller
General Description
AT6101Z is a active power factor corrected controller to drive PFC boost stages base on ATK
patented Pseudo Digital Control(PDC) method.
In PDC loop,AT6101Z classically operates in Critical conduction Mode(CRM) when the inductor current
below a programmable value.
When the current is exceed this preset level,the AT6101Z natural change to Continuous conduction
Mode(CCM).The loop stab山ty and response is controlled by PDC Loop. AT6101Z features a robust suite
of protec tion features to properly handle an array of power supply operating and fault condition.
The devices is available in SOP-14L package and require few external devices for operation.
AT6101Z is a active power factor corrected controller to drive PFC boost stages base on ATK
patented Pseudo Digital Control(PDC) method.
In PDC loop,AT6101Z classically operates in Critical conduction Mode(CRM) when the inductor current
below a programmable value.
When the current is exceed this preset level,the AT6101Z natural change to Continuous conduction
Mode(CCM).The loop stab山ty and response is controlled by PDC Loop. AT6101Z features a robust suite
of protec tion features to properly handle an array of power supply operating and fault condition.
The devices is available in SOP-14L package and require few external devices for operation.

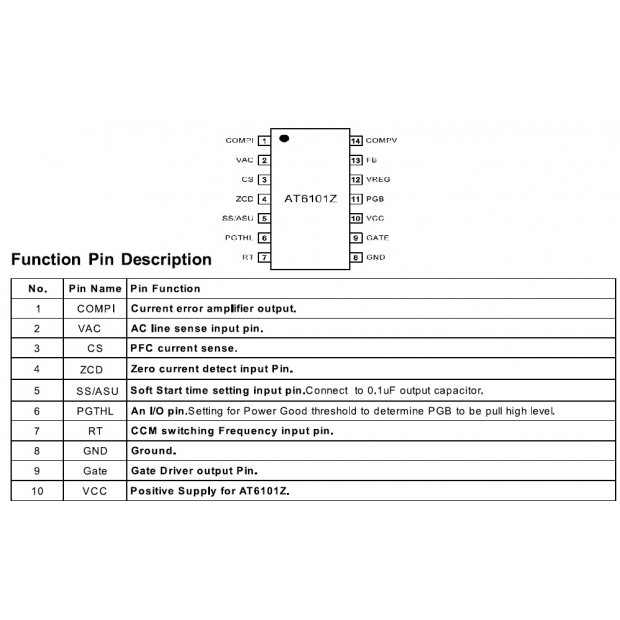

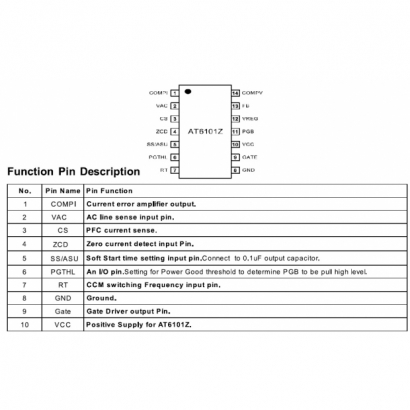

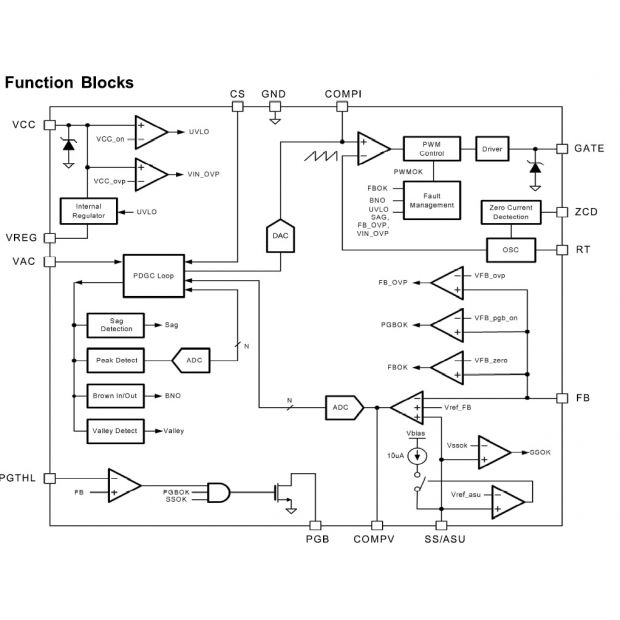

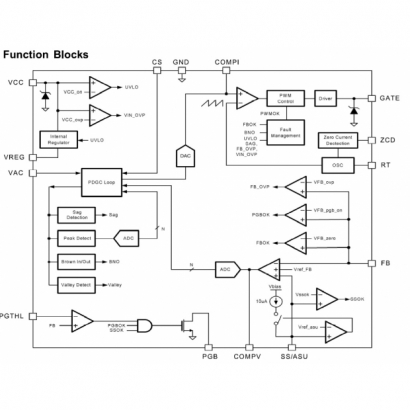

詳細介紹
口Pseudo Digital Control Loop without Analog multiplier(patent protected)
口Quick Transient Response
口Intelligent AC Power Sag Protection
口Multi-Mode CRM/CCM operation
口Programmable Soft Start
口Programmable CCM Operation Frequency 18kHz-130kHz
口Sourcing 1A/Sinking 1A High Drive Cability Driver
口Brown In/Out protection
口Bias-Supply UVLO,Over-Voltage Protection,Open Loop Detection,
口SOP-14L Package

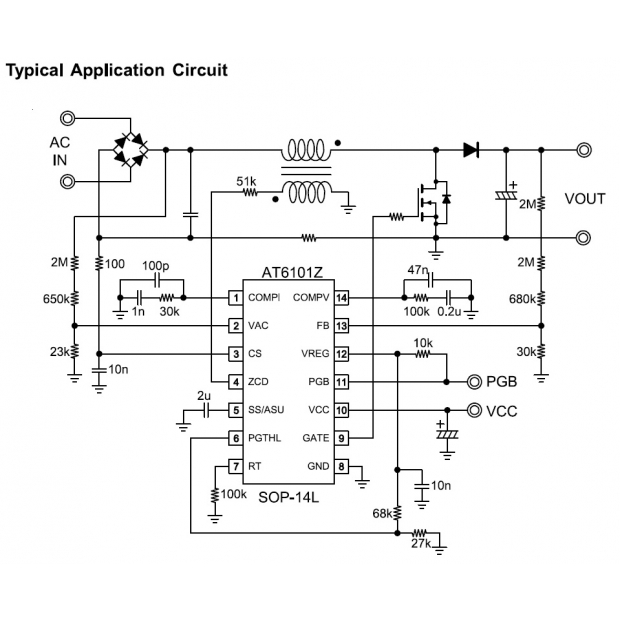

Applications
口High Efficiency Server and Desktop Power Supplies
口Telecom Rectifiers
口High Power Adaptor
口Off Line Appliances Requiring Power Factor Correction
