AT1002Z Dual Operation Amplifier

General Description

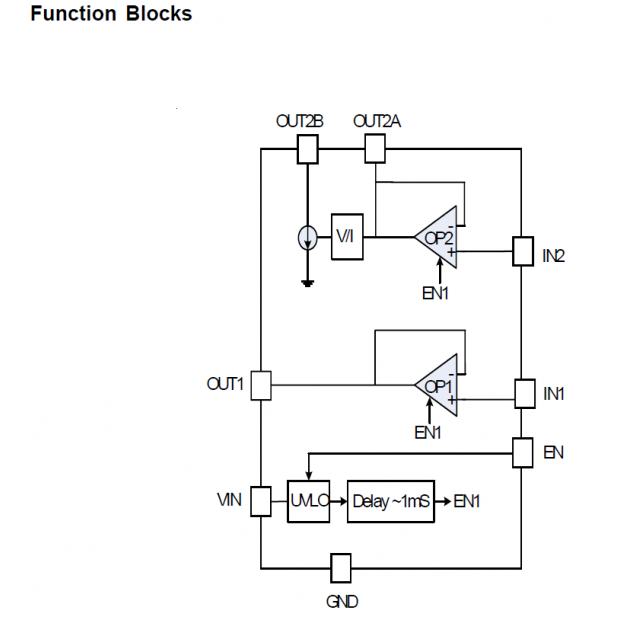

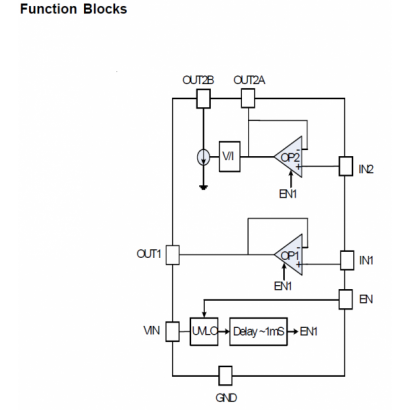

The AT1002Z is a highly integrated solution for PSU(power supply unit) application requiring a remote sense feedback to regulate the feedback voltage. AT1002Z integrates two Op-Amps and a 1msec counter to control the sequence of the chip.
It is designed to allow for operating a wide supply voltage range from 8V to 24V. The internal excellent offset
voltage cancellation mechanism makes the low offset voltage have good line regulation with flexible external
supply voltage design. The devices are available in SOT23-8L packages and require very few external devices for operation.
( Patent Protected )
